PVDF Tubing
Our PVDF tubing is available in a range of sizes from 20mm to 400mm OD, with customizable wall thicknesses from 1.9mm to 13.4mm. We also provide comprehensive customization services, including cutting, sizing, and flexible production for small or large-volume orders.
Our PVDF Tubing Types

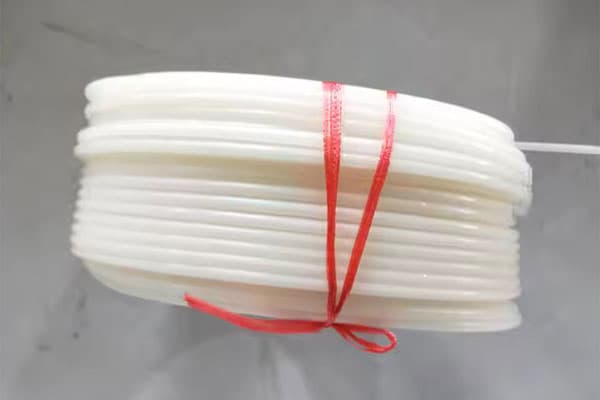

- Durable and chemical-resistant tubing with excellent mechanical strength and purity.
- Ideal for fluid transfer, chemical processing, and high-purity applications.

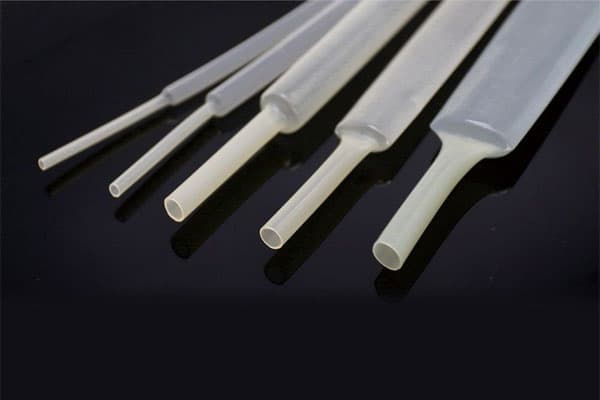

- Designed for insulation and protection.
- Provides high-temperature resistance, strong chemical stability, and excellent abrasion resistance.
- Helps secure wire and component protection.

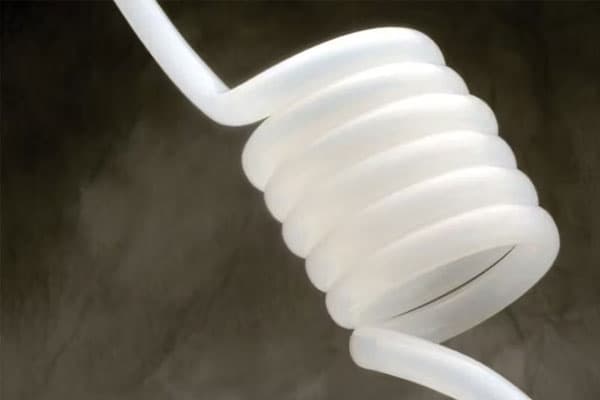

- Flexible and lightweight with strong kink resistance.
- Excellent chemical compatibility for demanding media.
- Suitable for fluid transfer, pneumatic applications, and compact system installations.
Our PVDF Standard Tubing Parameters
| OD | Thickness SDR33 PN10 | Thickness SDR21 PN16 |
|---|---|---|
| 20mm | / | 1.9mm |
| 25mm | / | 1.9mm |
| 32mm | / | 2.4mm |
| 40mm | / | 2.4mm |
| 50mm | / | 3.0mm |
| 63mm | 2.5mm | 3.0mm |
| 75mm | 2.5mm | 3.6mm |
| 90mm | 2.8mm | 4.3mm |
| 110mm | 3.4mm | 5.3mm |
| 125mm | 3.9mm | 6.0mm |
| 140mm | 4.3mm | 6.7mm |
| 160mm | 4.9mm | 7.7mm |
| 180mm | 5.5mm | 8.6mm |
| 200mm | 6.2mm | 9.6mm |
| 225mm | 6.9mm | 10.8mm |
| 250mm | 7.7mm | 11.9mm |
| 280mm | 8.6mm | 13.4mm |
| 315mm | 9.7mm | / |
| 355mm | 10.8mm | / |
| 400mm | 12.2mm | / |
What sizes of PVDF tubing do you manufacture?
We offer PVDF tubing with outer diameters (OD) from 20mm to 400mm and wall thicknesses from 1.9mm to 13.4mm.
How does PVDF tubing compare to other plastic tubing materials?
PVDF tubing provides superior chemical resistance, higher mechanical strength, and better UV/radiation resistance compared to materials like PVC, PE, or PTFE.
What color options are available for your PVDF tubing?
Our standard PVDF tubing is available in natural (translucent white) and black. Custom colors may also be available upon request.
Do you offer custom sizes of PVDF tubing?
Yes, we can manufacture custom sizes according to your required OD, wall thickness, and length.
Can you provide PVDF tubing in different lengths?
Yes, we can supply PVDF tubing in standard coils, straight lengths, or custom-cut sections based on your needs.
Can you provide reinforced PVDF tubing?
Yes, we can offer reinforced PVDF tubing with additional layers for improved pressure resistance and durability.
