PTFE Tubing Manufacturer
We offer a wide range of high-quality PTFE tubing solutions in various colors, sizes, and treatments to meet diverse industry needs. Contact us today for your PTFE tubing requirements.
Our PTFE Tubing Variants

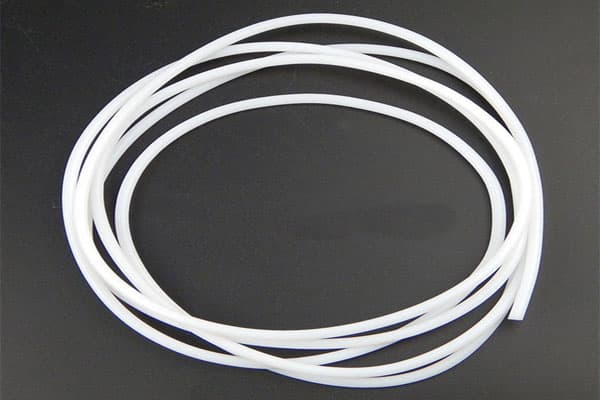

- Highly flexible and chemical-resistant tubing.
- Suitable for fluid transfer, electrical insulation, and medical applications.
- OD: 2.5mm - 51mm; ID: 1.5mm - 48mm; Wall Thickness: 0.5mm - 3.0mm.

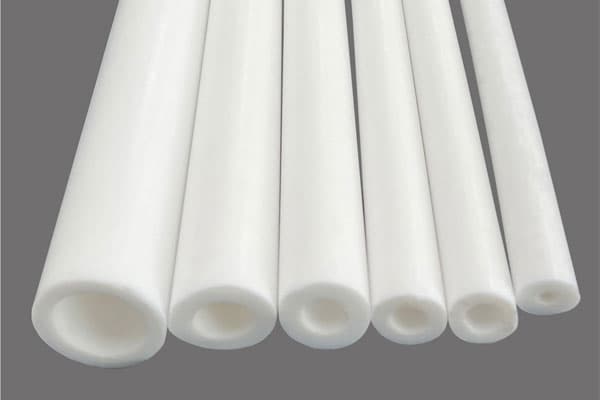

- Sturdy with slight flexibility, low friction, and high dielectric strength.
- Excellent chemical resistance.
- OD: 18mm - 400mm; ID: 8mm - 375mm; Wall Thickness: 2mm - 25mm.

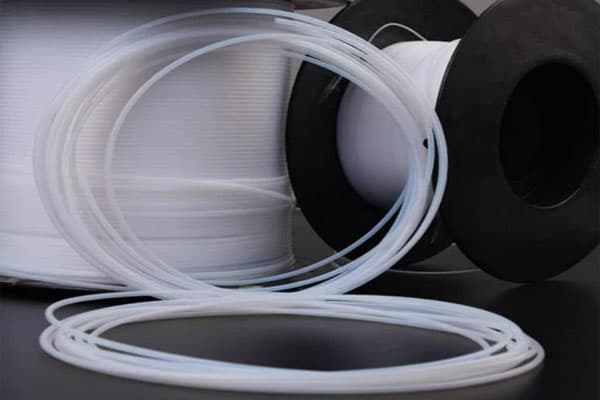

- Ultra-thin precision tubing for analytical instruments and microfluidics.
- Ideal for chromatography and precision flow paths.
- OD: 0.6mm - 9.38mm; ID: 0.30mm - 8.38mm; Wall Thickness: 0.15mm - 0.5mm.
Additional Forming Process

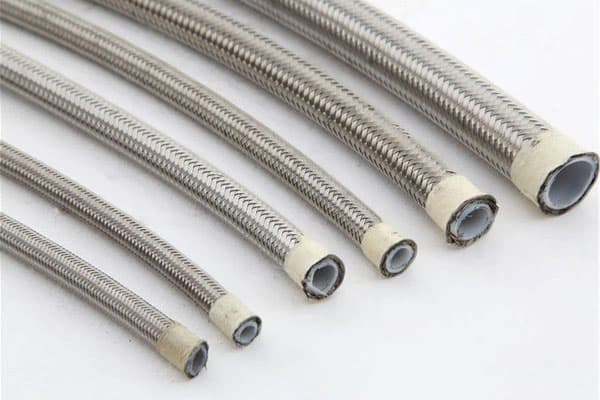

- PTFE core with stainless steel braided reinforcement.
- Improved mechanical strength and pressure resistance.
- OD: 6.3mm - 63.5mm; ID: 3.0mm - 50.8mm; Wall Thickness: 1mm - 2mm; Min. Burst Pressure: 55 - 550 (kg/cm²).

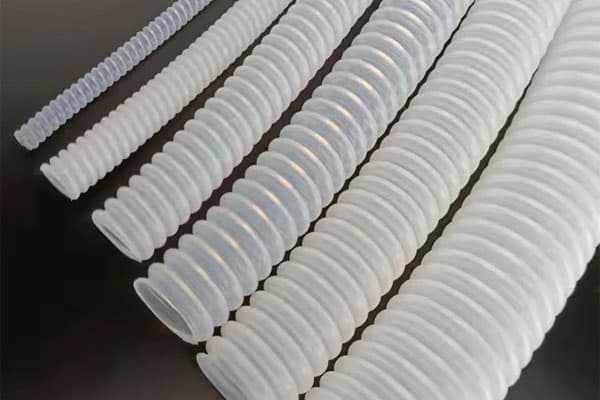

- Ribbed spiral structure for easy bending and routing in tight spaces.
- Good flexibility for dynamic installations.
- OD: 5.6mm - 79mm; ID: 3.2mm - 68mm; Wall Thickness: 1mm, 1.5mm, 2mm; Length: Max. 25m.

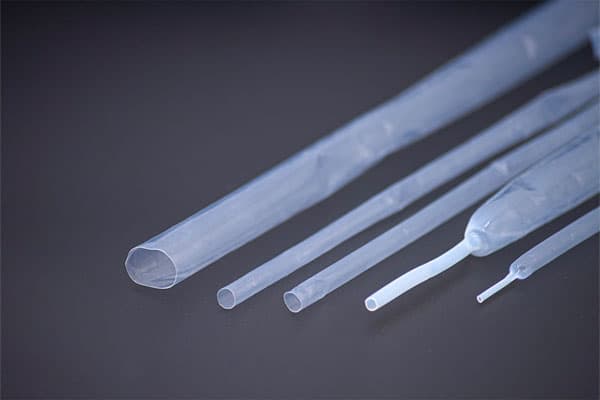

- Expands then shrinks with heat for a tight protective fit.
- Suitable for wire insulation and component protection.
- Shrink Ratio: 1.7:1, 4:1; ID Before Shrink: 0.7mm - 9.0mm; ID After Shrink: 0.4mm - 2.3mm; Wall Thickness: 0.07/0.10/0.15/0.20mm.
Available Colors

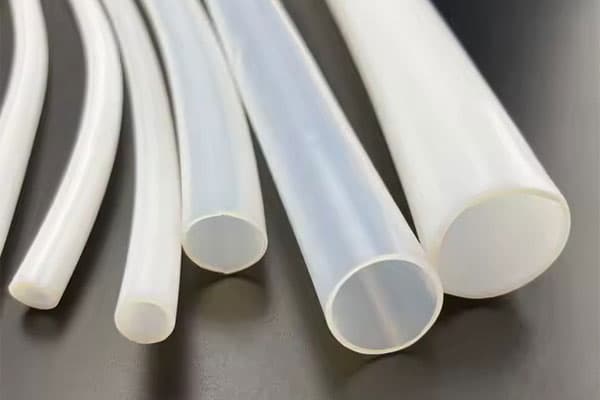

- Natural and uncolored PTFE form.
- Clean and neutral appearance for broad compatibility.

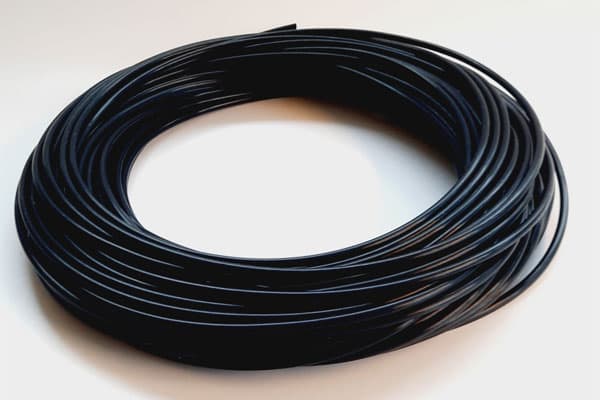

- Produced with carbon black additive.
- Better UV resistance and durability for outdoor/high-temperature use.

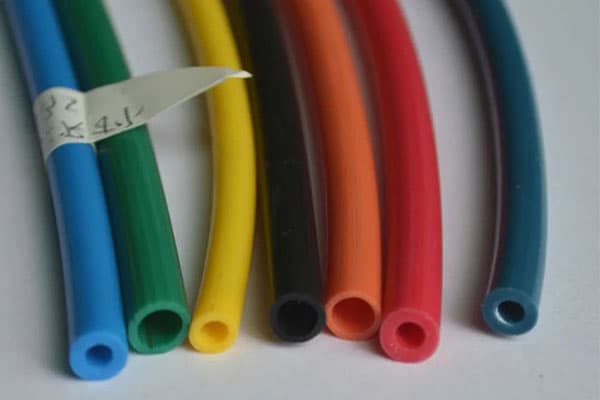

- Colorants added before processing.
- Suitable for color-coded systems and visual differentiation.

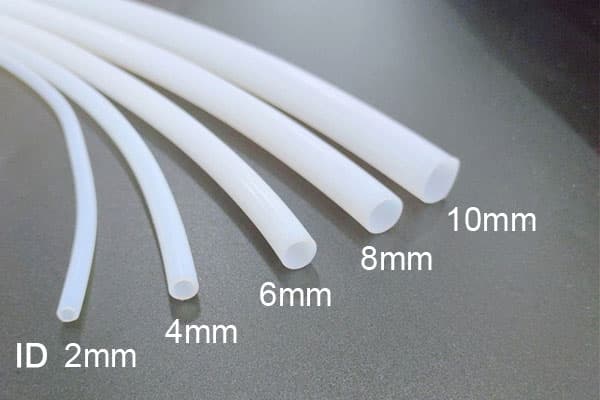

Our PTFE Tubing Sizes
| OD | ID | Wall Thickness |
|---|---|---|
| 1/8" (3.17mm) | 1.58mm | 0.8mm |
| 1/4" (6.35mm) | 4.35mm | 1.0mm |
| 3/8" (9.53mm) | 7.53mm | 1.0mm |
| 2/5" (10.20mm) | 8.20mm | 1.0mm |
| 4/5" (20.32mm) | 12.70mm | 1.0mm |
| 1" (25.40mm) | 15.24mm | 2.0mm |
| 2" (50.00mm) | 50.0mm | 1.6mm |

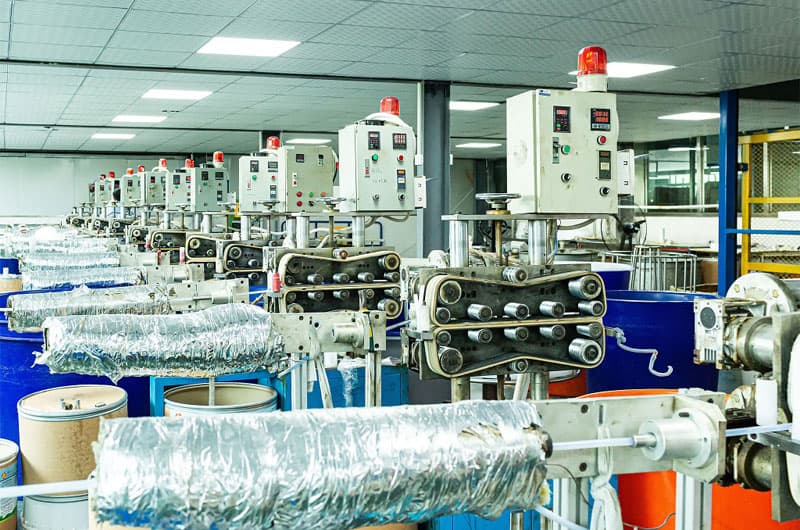

PTFE Tubing Manufacturing Methods
Extruded PTFE Tubing
PTFE tubing is manufactured by a controlled extrusion and sintering process to ensure stable dimensions and performance.
- Raw Material Preparation: Fine PTFE powder is selected and mixed with additives if required.
- Preforming: PTFE powder is compressed into a solid billet under high pressure.
- Extrusion: The billet is pushed through a die using a paste extrusion machine to form tubing.
- Sintering: The tubing is heated at 360°C-400°C to solidify and remove lubricant.
- Cooling & Cutting: The tube is cooled, then cut to length or coiled.
- Finishing & Quality Control: Checked for ID/OD/wall thickness, strength, and chemical resistance; optional treatments can be applied.
Do you use 100% virgin PTFE material?
Yes, all of our PTFE tubing is made from 100% virgin material to ensure the highest quality and performance.
What is the manufacturing method for your PTFE tubing?
Our PTFE tubing is manufactured through extrusion, ensuring precise and consistent quality.
What types of PTFE tubing do you offer?
We offer flexible, semi-rigid, capillary, SS braided, convoluted, and heat shrink PTFE tubing.
What are the available sizes of your PTFE tubing?
Outer diameters (OD): 0.6mm to 400mm. Inner diameters (ID): 0.3mm to 375mm. Wall thickness: 0.15mm to 25mm.
What colors are available for PTFE tubing?
We provide standard white PTFE tubing, black PTFE tubing, and custom-colored PTFE tubing.
Can I request specific certifications for PTFE tubing?
Yes, we can provide certifications based on industry requirements, including ISO, FDA approval, UL ratings, and more.
Do you offer free samples of PTFE tubing?
Yes, we offer samples of our PTFE tubing for evaluation before placing a full order.
