FEP Tubing Manufacturer
FEP tubing is known for exceptional chemical resistance, high-temperature tolerance, and non-stick properties, making it suitable for medical, electrical, and industrial applications. Our FEP tubing is available in multiple OD/ID sizes, wall thicknesses, and custom-cut lengths to meet specific requirements. We also offer custom colors and striping options.
Our FEP Tubing Variants

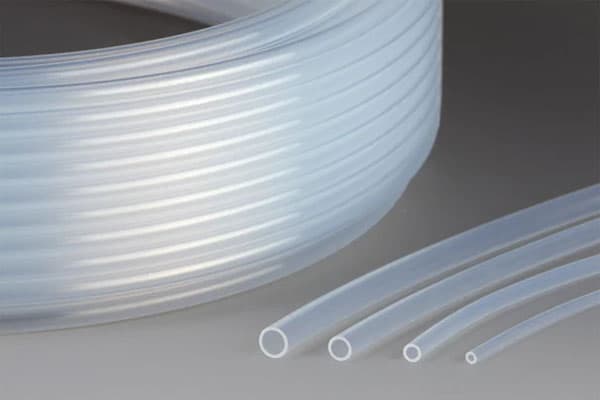

- Flexible tubing with smooth inner walls and non-stick surface.
- Typically used for fluid and gas transfer.
- OD: 0.5mm - 8.0mm.
- ID: 0.3mm - 6.0mm.
- Wall Thickness: 0.1mm - 1.0mm.

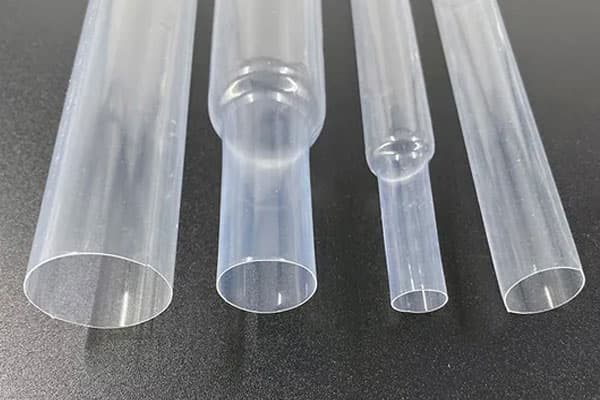

- Designed to shrink under heat for a tight, conforming fit around components.
- Suitable for applications requiring insulation and secure coverage.
- ID Before Shrink: 3.0mm - 12.0mm.
- ID After Shrink: 2.3mm - 7.5mm.
- Wall Thickness: 0.03mm - 0.35mm.

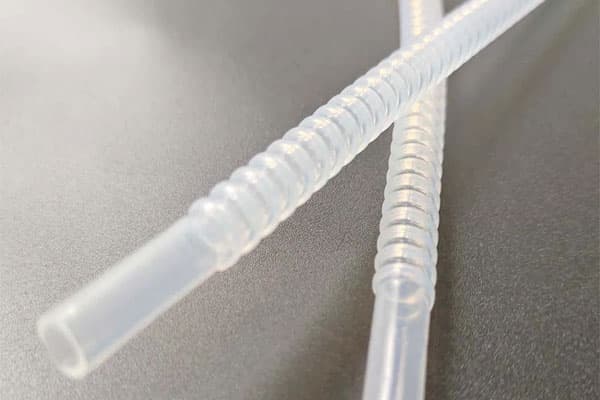

- Corrugated spiral design for enhanced flexibility.
- Bends around obstacles more easily than straight tubing.
- OD: 6mm - 25mm.
- ID: 4mm - 22mm.
- Wall Thickness: 1.0mm - 1.6mm.
Our Standard FEP Tubing Parameters
| ID | OD | Wall Thickness | Length |
|---|---|---|---|
| 0.3 +- 0.05mm | 0.5 +- 0.05mm | 0.10mm | 50m |
| 0.4 +- 0.05mm | 0.6 +- 0.05mm | 0.10mm | 50m |
| 0.5 +- 0.05mm | 0.7 +- 0.05mm | 0.10mm | 50m |
| 0.6 +- 0.05mm | 0.8 +- 0.05mm | 0.10mm | 50m |
| 0.7 +- 0.05mm | 0.9 +- 0.05mm | 0.10mm | 50m |
| 0.8 +- 0.05mm | 1.0 +- 0.05mm | 0.10mm | 50m |
| 0.9 +- 0.05mm | 1.1 +- 0.05mm | 0.10mm | 50m |
| 1.1 +- 0.05mm | 1.3 +- 0.05mm | 0.10mm | 50m |
| 1.3 +- 0.05mm | 1.5 +- 0.05mm | 0.10mm | 50m |
| 1.5 +- 0.05mm | 1.7 +- 0.05mm | 0.10mm | 50m |
| 1.6 +- 0.08mm | 2 +- 0.08mm | 0.20mm | 300 |
| 1.0 +- 0.08mm | 2 +- 0.08mm | 0.50mm | 300 |
| 2.0 +- 0.08mm | 3 +- 0.08mm | 0.50mm | 200 |
| 3.0 +- 0.08mm | 4 +- 0.08mm | 0.50mm | 100 |
| 4.0 +- 0.1mm | 6 +- 0.1mm | 1.0mm | 100 |
| 5.0 +- 0.1mm | 7 +- 0.1mm | 1.0mm | 100 |
| 6.0 +- 0.1mm | 8 +- 0.1mm | 1.0mm | 100 |
What makes FEP tubing different from PTFE tubing?
While both are fluoropolymers, FEP tubing has better flexibility, clarity, and a lower melting point than PTFE tubing.
What sizes of FEP tubing do you offer?
We provide a wide range of inner and outer diameters. For standard FEP tubing: OD: 0.5mm - 8.0mm; ID: 0.3mm - 6.0mm
Can your FEP tubing be coiled or shaped into custom forms?
Yes, we offer coiled, convoluted, and formed tubing for specialized applications.
Do you offer color-coded FEP tubing?
Yes, we provide custom-colored FEP tubing for identification purposes.
Can you print logos or markings on FEP tubing?
Yes, we offer custom printing services for branding, measurement markings, or identification.
How do you price your FEP tubing?
Pricing is based on size, quantity, and customization.
